Four Stage Inline High Shear Mixer Homogenizer

When a manufacturing process demands exceptionally fine particle size reduction, uniform emulsification, or high-throughput dispersion in a single pass, a standard single-stage or two-stage inline homogenizer often isn’t enough. This is where the Four Stage Inline Homogenizer — a patented design engineered and manufactured in India by Wahal Engineers — changes what’s possible on the production floor.

What Is a Four Stage Inline Homogenizer?

A Four Stage Inline Homogenizer is a high shear mixing system built around four sets of rotor-stator assemblies arranged in series, each stage progressively refining the product as it passes through. Unlike single or two-stage systems, where material may need multiple recirculation passes to reach the desired particle size, the four-stage configuration compounds the shearing action of each rotor-stator set within a single continuous pass — dramatically improving throughput and consistency for demanding applications.

Each stage can be configured with different rotor-stator head geometries depending on the specific application, allowing the machine to combine coarse initial dispersion with progressively finer refinement, all within one inline unit.

Wahal’s Patented Design — Made in India

Wahal Engineers’ Four Stage Inline Homogenizer is a patented design, developed and manufactured entirely in India. Rather than adapting an imported or licensed design, Wahal has engineered this multi-stage rotor-stator system in-house, giving Indian and global manufacturers access to advanced homogenization technology without dependency on imported equipment or long international lead times.

This “Make in India” engineering approach also means faster customization, quicker spare parts availability, and direct engineering support — an important consideration for manufacturers who have previously relied on European or American-built multi-stage homogenizers with longer service and shipping timelines.

Key Features

• Four independent rotor-stator stages, each configurable with application-specific head designs
• High-capacity flow rates, suitable for continuous, high-volume production lines
• Sanitary design, configurable to meet FDA compliance requirements for regulated industries
• Explosion-proof options — ATEX-approved and IEC-60079 flameproof/explosion-proof motors available for hazardous processing environments
• Flexible inlet/outlet configurations — flanged, DIN, Tri-clamp, or ASA connections built to your process layout
• Single or double mechanical seal options, including water-cooled and thermosyphon sealing systems for demanding duty cycles
• Jacketed designs available for temperature-sensitive formulations
• TEFC, washdown, and stainless-steel motor options, with ATEX-approved control panels for hazardous-area installations

Why Manufacturers Choose Four-Stage Homogenization

Fewer passes, faster batches. Because each stage refines the product further, manufacturers often achieve target particle size in a single pass rather than recirculating material multiple times through a single-stage unit — directly reducing batch cycle time.

Consistent, repeatable results. With four dedicated shearing stages instead of one, product consistency batch after batch improves significantly, reducing variability that can affect downstream quality control.

Ideal for demanding applications, including:

• Pharmaceutical suspensions and emulsions requiring fine, uniform particle size
• Cosmetic and personal care emulsions (creams, lotions)
• Food and beverage emulsification and dispersion
• Chemical and specialty formulation processing requiring high shear input

Real-World Results

Manufacturers who have piloted Wahal’s four-stage inline homogenizer alongside other equipment have reported significant improvements in batch cycle time, production efficiency, and overall product quality after transitioning to production-scale units — validating the technology’s real-world impact beyond lab-scale testing.

Built for Regulated and Hazardous Industries

Because the Four Stage Inline Homogenizer can be configured for FDA compliance and supplied with ATEX-certified or flameproof motor options, it’s suited not only for standard industrial processing but also for pharmaceutical, chemical, and hazardous-environment applications where safety certification is non-negotiable.

Engineered in India, Trusted Globally

As a patented Indian design, Wahal’s Four Stage Inline Homogenizer reflects decades of in-house engineering experience in high shear mixing technology. It stands as an example of advanced process equipment manufacturing developed domestically — offering global manufacturers a technically robust, customizable, and locally-supported alternative to imported multi-stage homogenization systems.

Frequently Asked Questions

What makes a four-stage homogenizer different from a single or two-stage unit? Each additional stage adds another set of rotor-stator shearing action within the same pass, allowing finer particle size reduction and higher throughput without multiple recirculation cycles.

Is the Four Stage Inline Homogenizer suitable for pharmaceutical applications? Yes — it can be configured for sanitary design and FDA compliance, making it suitable for pharmaceutical suspensions, emulsions, and other regulated formulations.

Can it be used in hazardous or explosive environments? Yes — ATEX-approved and IEC-60079 flameproof/explosion-proof motor options are available for hazardous-area installations.

Is this design available for both batch and continuous processing? The Four Stage Inline Homogenizer is built primarily for continuous, high-throughput inline processing, and can be integrated into existing production lines with flexible inlet/outlet connections.

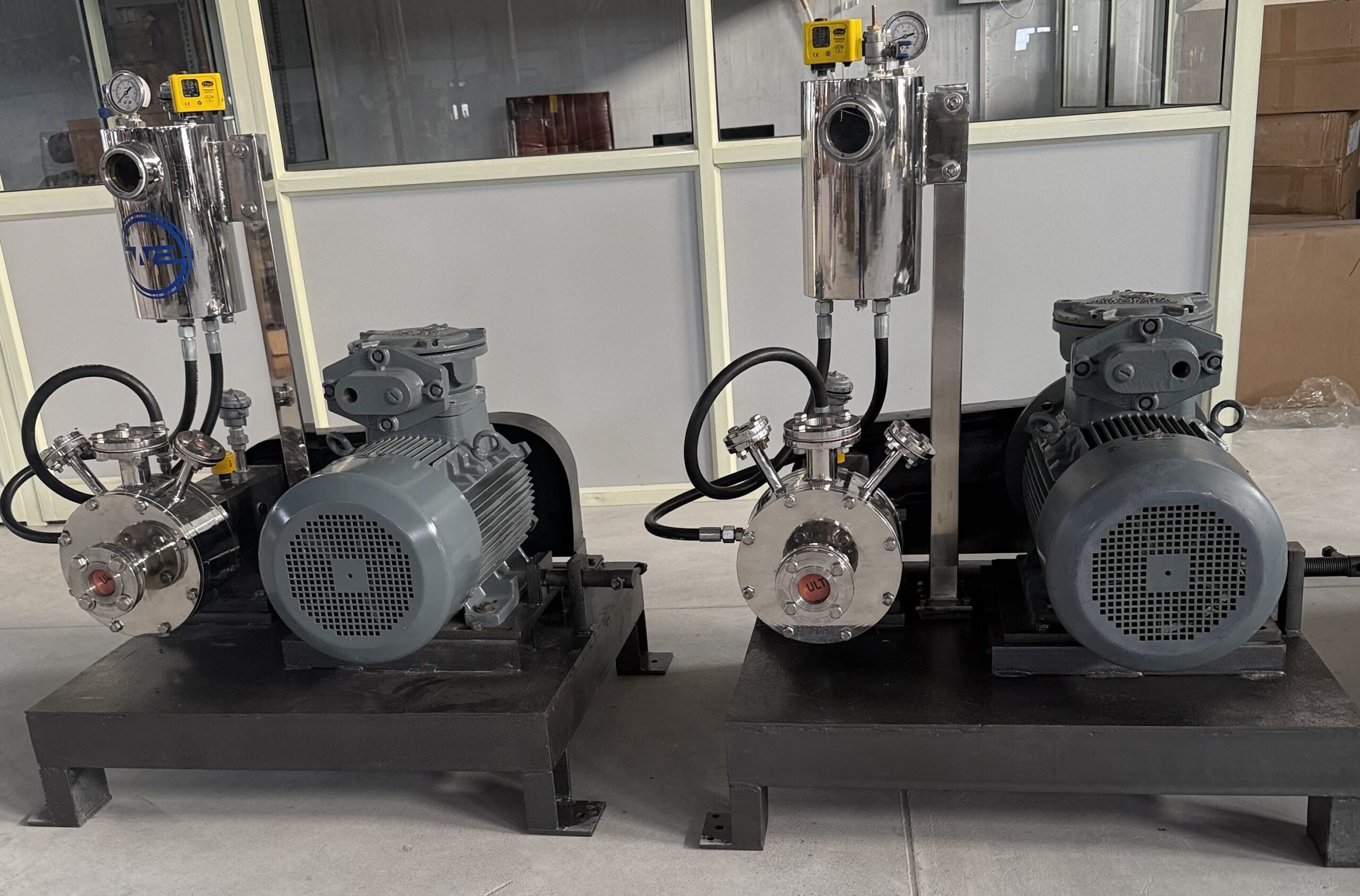

We also have a unique design which works at 6000 rpm achieving a tip speed of 45-65m/s called the super mill inline high shear rotor stator mixer.

• Can achieve tip speed of upto 65 m/s
• Self-pumping
• Can be used in a single pass or a recirculating batch
• Lower power consumption per cycle as compared to traditional agitators
• CIP/SIP model available upon request
• Conical shear tools available for extremely narrow particle size distribution
• Can be force fed using positive displacement pump for high viscosity liquids
• Double mechanical sealing with thermosyphon system as per plan 53A is available optionally
• Rotor stator MOC can be customised according to application

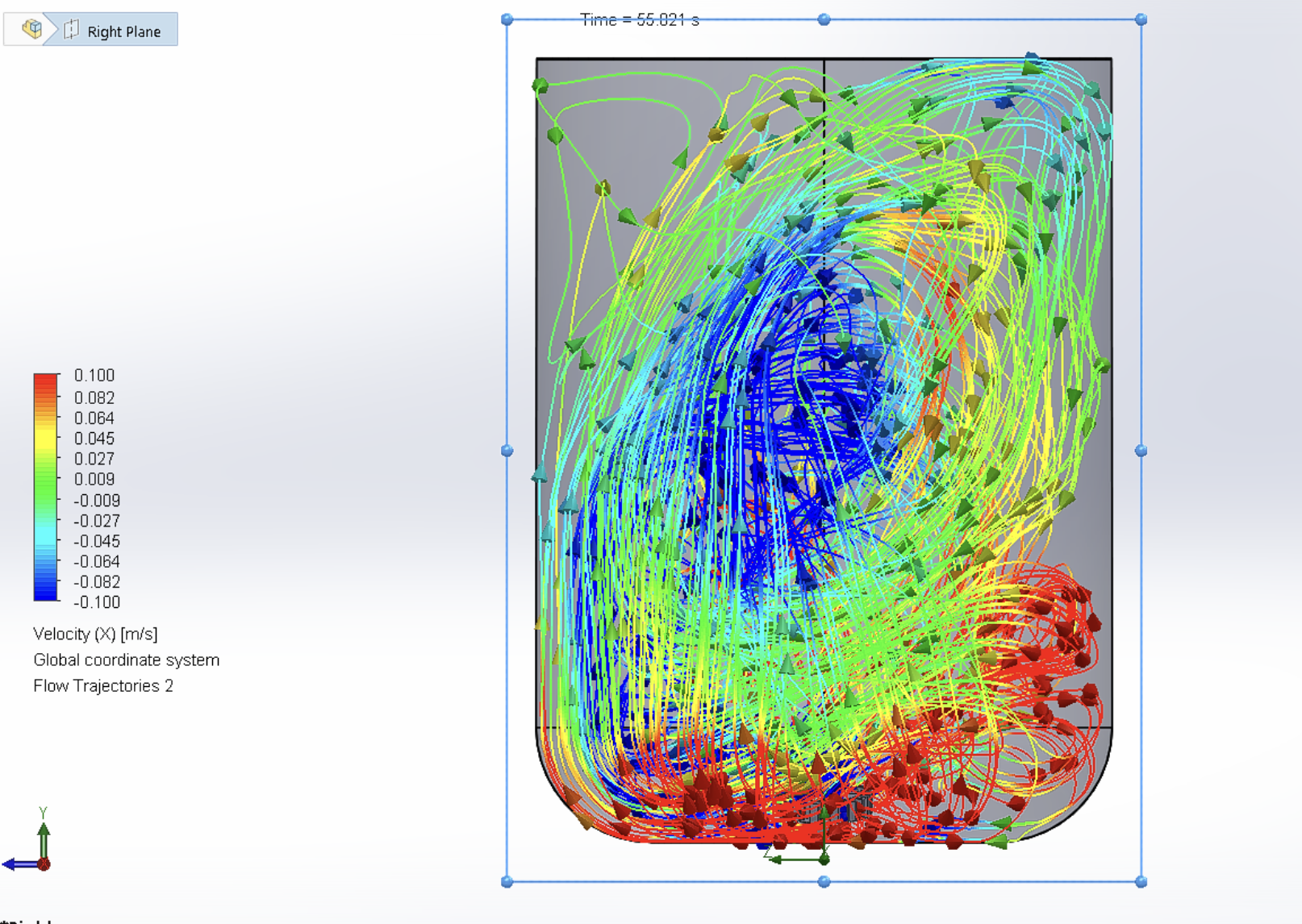

We also offer CFD analysis for determining the right mixer.

And we manufacture ISO & GMP Compliant Mixers highly trusted by Pharma Manufacturers.

Our manufacturing is ISO-Certified.
